RATTMMOTOR 1.5KW 220V Square Air Cooled Spindle Motor ER11, 24000RPM High Speed Spindle 4 Bearings 3-Phase 5A 400Hz for CNC Router Engraver Milling Cutting Machine
4.6 (42 items)
Limited Time SaleUntil the end
01
49
43
$77.40 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $129.00
Product details
| Management number | 221113290 | Release Date | 2026/05/03 | List Price | $51.60 | Model Number | 221113290 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

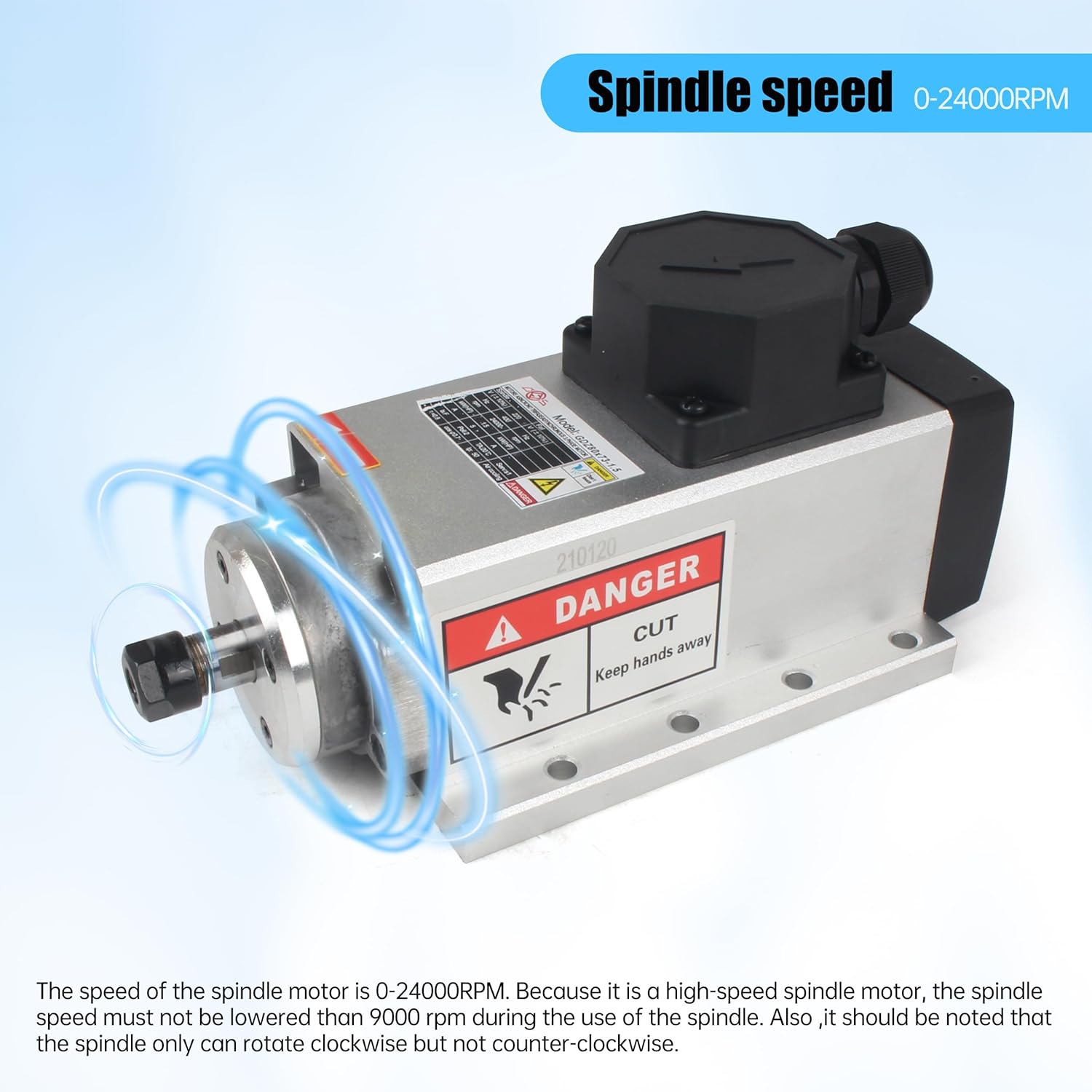

- ✅【Parameters】Power: 1.5KW, Voltage: 220V AC, Current: 5A, Frequency: 400HZ, Speed: 24000RPM, Cooling: Air-cooled; Runout off: Less than 0.01mm, Precision tapered bore: Less than 0.005mm, Bearing lubrication: Grease, Collet size: ER11, Bearing: 4PCS.
- ✅【High precision P4 grade bearings】The motor adopts four P4 grade high-speed bearings, which can effectively guarantee the machining accuracy of the spindle. Meanwhile, the dynamic balance high precision nut and collet are selected to better ensure the spindle precision.
- ✅【Square air-cooled spindle】With its own cooling fan, the cooling is strong and efficiently reduces the heat generated by high-speed rotation, thus increasing the life of the motor.
- ✅【High concentricity and precision】The shell is made of high quality aluminium alloy, which increases the cooling efficiency by 20% and dissipates heat faster. Imported bearings ensure durability while greatly improving product running efficiency.
- ✅【Applications】Suitable for solid wood, PVC and acrylic and other materials industry in the field of engraving and cutting, especially suitable for use in CNC woodworking advertising engraving machine and other equipment.
| Model | GDZ80-73-1.5 |
|---|---|
| Brand Name | RATTMMOTOR |
| Unit Count | 1.0 Count |
| Part Number | GDZ80-73W15-HU |
| Manufacturer | RATTMMOTOR |
